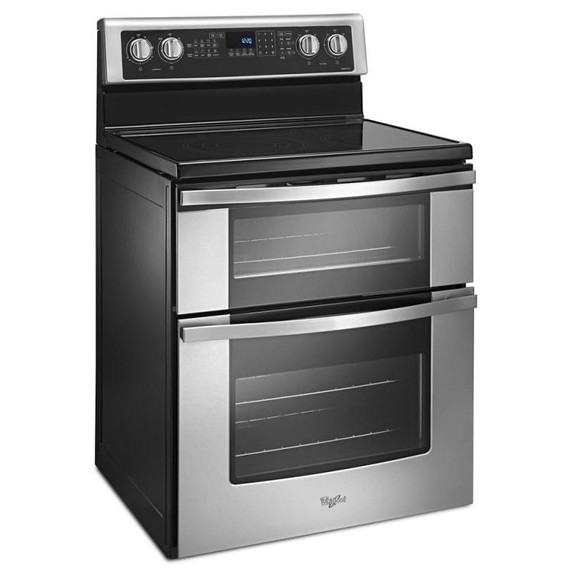

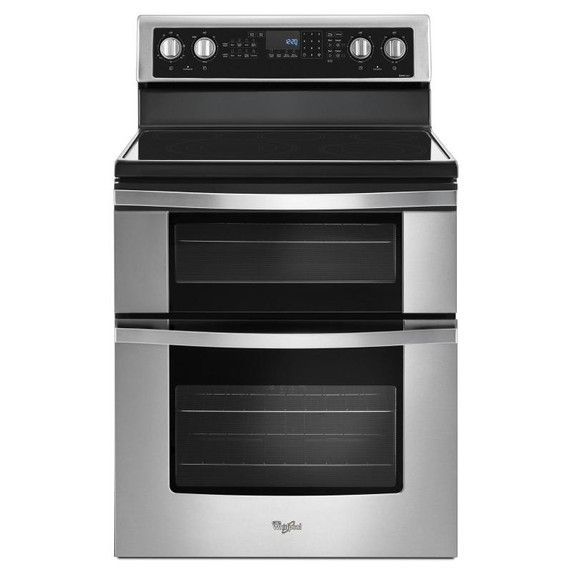

Get dinner on the table quickly with this electric double oven range. True convection cooking lets you cook food faster. Convection Conversion will do the math for you to adjust cooking times and temperatures. Skip preheating this kitchen range for frozen favorites like pizza, lasagna, chicken nuggets, fries or pies, thanks to Frozen Bake™ technology. The FlexHeat™ triple radiant element is like having three elements in one to fit small pots and pans and make room for larger cookware on the range stove. And if you make a mess, AquaLift® self-cleaning technology provides this kitchen range with odor-free cleaning without harsh chemicals in only 50 minutes.
Features
Top 3 Features

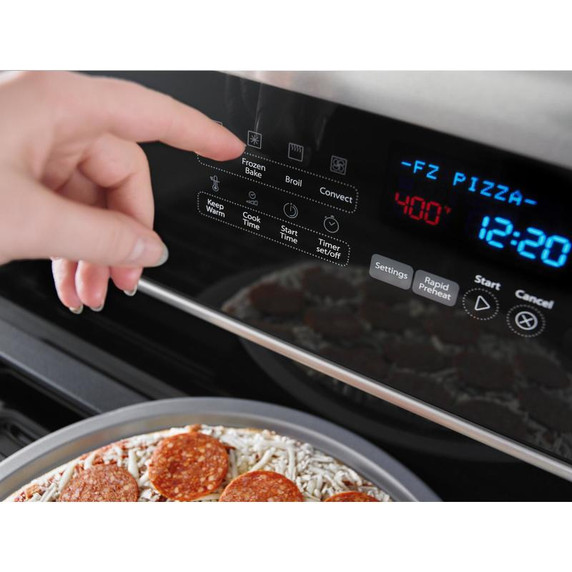

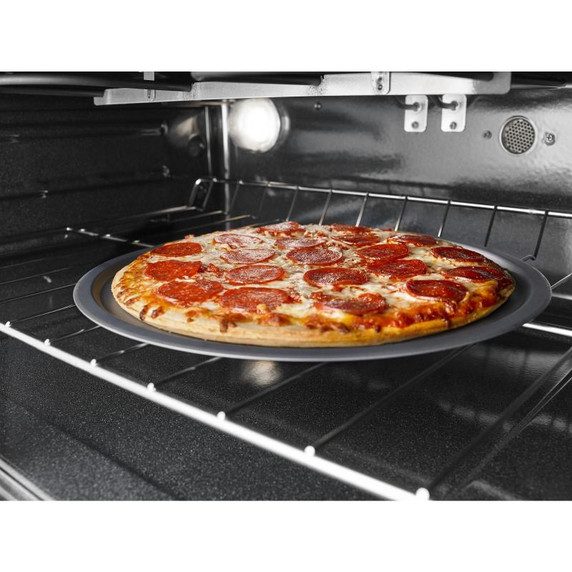

Frozen Bake™ TechnologySkip preheating for favorites like pizza, lasagna, chicken nuggets, fries or pies so you can cook frozen foods faster.

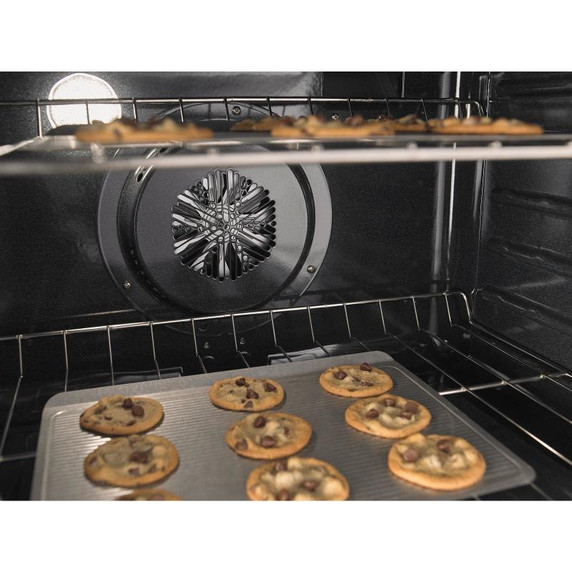

True Convection CookingTrue convection cooking helps you cook foods faster by using a third element plus a fan to distribute hot air evenly over, under and around food.

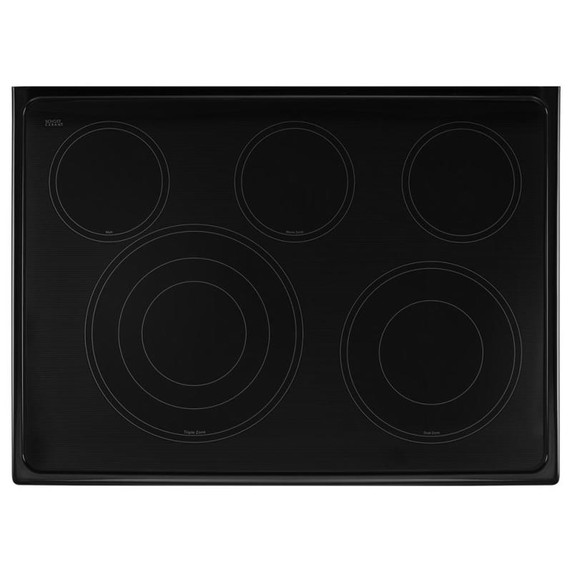

FlexHeat™ Triple Radiant ElementThe FlexHeat™ triple radiant element is like having three elements in one. A 6" inner ring is great for smaller pots and pans, while 9" and 12" outer rings make room to heat larger cookware.
Additional Features
Convection ConversionYour oven will do the math for you when you need to convert traditional recipes for convection cooking, automatically adjusting cooking times and temperatures.
SteamClean OptionThe SteamClean option saturates baked on messes with water and high heat so they wipe up quickly.
Temperature SensorA built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.
Rapid Preheat (Lower Oven Only)Save time when you only need to bake on one rack. Rapid Preheat uses all of the elements and a rear fan to heat the oven quickly.
Hidden Bake ElementA Hidden Bake Element under the floor of the oven creates a smooth surface inside the oven that’s easy to clean.
Specifications
Controls
Electronic Display TypeDigital
Knob ColorBlack Stainless
Configuration and Overview
Energy
Annual Energy Usage Kwh527
Specifications
Optional AccessoriesW10355051B
Extended Service Plan ParentEW08IW1Y, EW08IW2Y, EW08IW4Y
Product To Product PairsUVL5430JSS, UXT4130ADS, UXT5230BDS, UXT5530AAS, WVU17UC0JS, WVU17UC0JW, WVU37UC0FS, WVU57UC0FS, WVW51UC0LS, WVW53UC0HV, WVW53UC0LS, WVW57UC0FS, WVW73UC0LS
Features
Heating Element On Indicator LightYes
Automatic Convection Conversion Temperature AdjustYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
Refinements
Whr RangeBladed Knob; Frozen Bake™ Technology; Self-Cleaning; True Convection; Whirlpool Handle
Certifications
Energy Rating Kwh Year527
Exterior
Handle ColorStainless Steel
Configuration
Range ConfigurationFreestanding

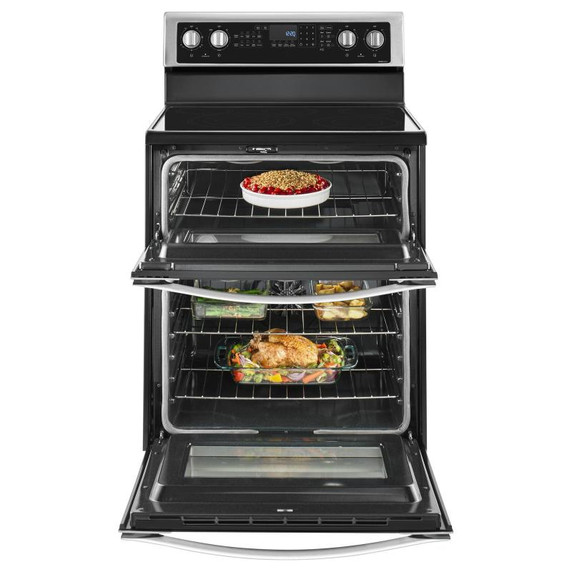

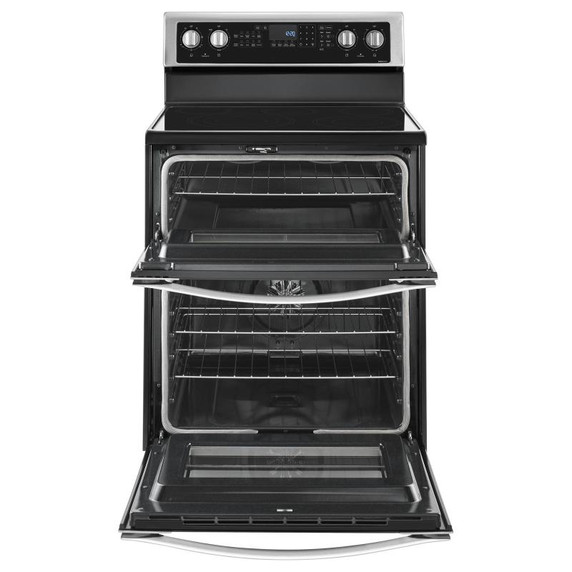

Oven ConfigurationDouble Oven
Description
Range TypeFreestanding Double Oven
Details
Broiler LocationTop of Oven
Broiler Element Power3600W
Oven Cleaning TypeSteam Clean
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)
Bake Element Power2000WBoth
Cooktop Surface MaterialCeramic Glass
Number Of Oven Racks1 Upper-2 Lower
Number Of Rack Guides2 Upper-5 Lower

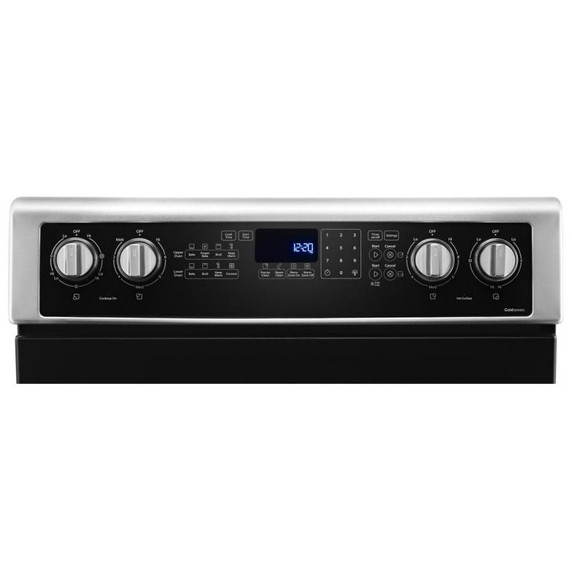

Oven Control TypeElectronic Touch
Oven Cooking SystemThermal Upper-Convection Lower
Oven Control LocationRear Control
Convection Element TypeTrue
Convection Element Power Watts1600
Convection FunctionsBake Lower; Broil Lower; Roast Lower
Hidden Bake ElementYes Both
Cooktop Details
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop Element StyleCeran
Left Front Element Burner Power3000W
Left Rear Element Burner Size6in.
Right Front Element Burner Power3000W
Right Front Element Burner Size9in./6in.
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Number Of Cooking Element Burners5
Center Rear Element Burner Power100W
Left Front Element Burner Size12in./9in./6in.
Left Front Element Burner TypeTriple
Right Front Element Burner TypeStandard Radiant
Cooktop Control LocationBackguard
Left Rear Element Burner TypeStandard Radiant
Right Rear Element Burner TypeStandard Radiant
Center Rear Element Burner TypeStandard Radiant
Left Rear Element Burner Power300W/1300W
Dimensions
Depth Closed Excluding Handles27.25"
Depth With Door Open 90 Degree46.0"
Capacity FT3 (cubic feet)6.7
