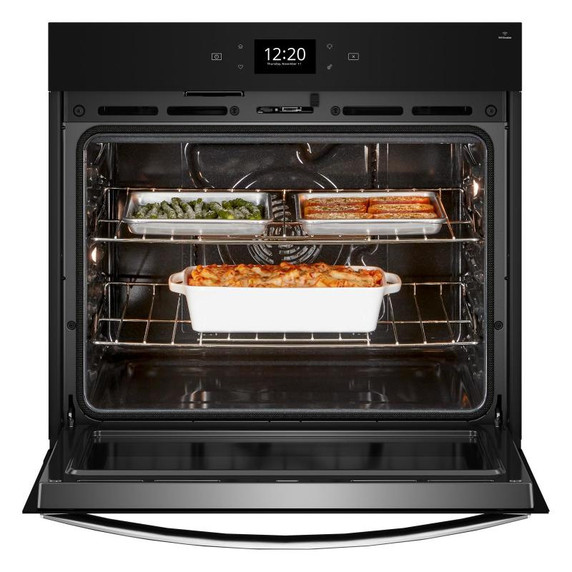

Smart Wall OvenWhen you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.*
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
8-in-1 Wall Oven with Air FryCook however you want with 8 cooking modes in one wall oven: Air Fry, Frozen Bake™, Keep Warm, Broil, Convect Broil, Bake, Convect Bake and Convect Roast. For even more cycles and enhanced performance over time, connect your appliance to receive Automatic Feature Updates.*
*Appliance must be connected. Wifi & App Required. Features subject to change. Details and privacy info at Whirlpool.com

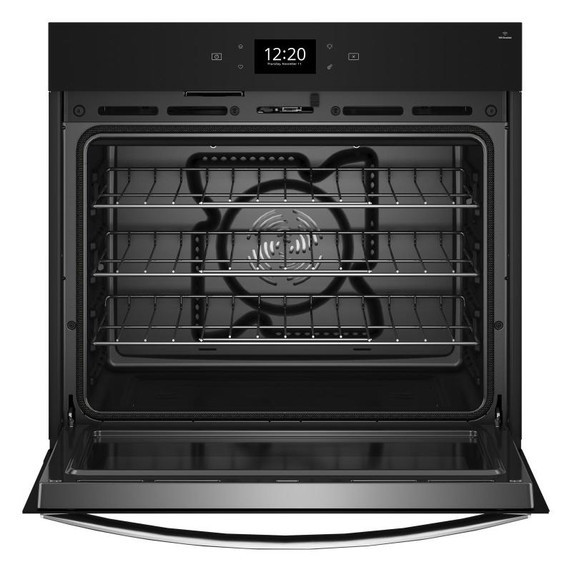

5.0 Cu. Ft. Oven CapacityEasily cook large meals with 5.0 Cu. Ft. Oven Capacity.
Automatic Feature Updates When Connected*
*Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.Select Whirlpool® Smart Appliances get smarter over time with new cycles and automatic updates* to enhance performance. Once your appliance is connected, it downloads updates and adds new cycles as they’re released.
*Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.

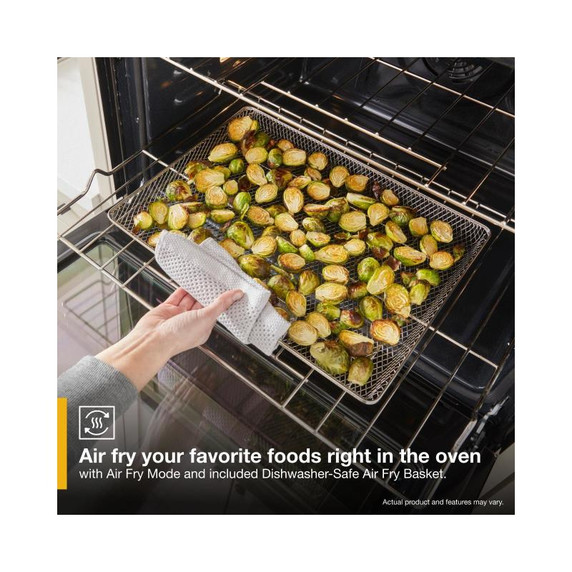

Dishwasher-Safe Air Fry BasketFor easy cleaning, put the included Dishwasher-Safe Air Fry Basket right in the dishwasher when it gets messy.

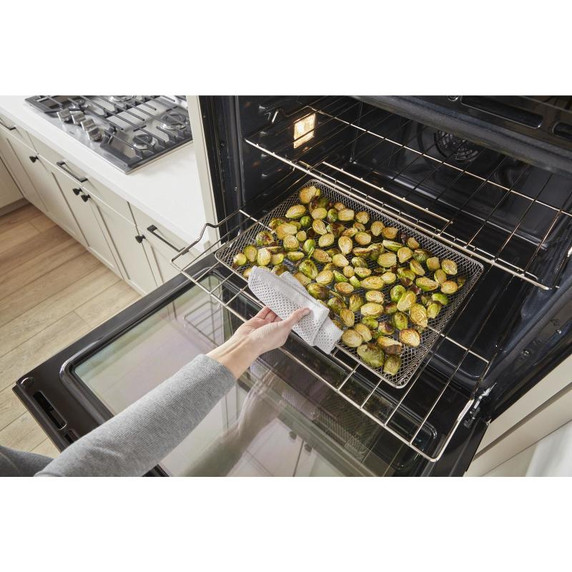

Air Fry ModeSkip preheating and air fry chicken nuggets, wings, fries and more to get crispy results right in your oven. The Air Fry Mode circulates hot air around the air fry basket to cook fried food in a healthy way, with less oil than traditional frying.

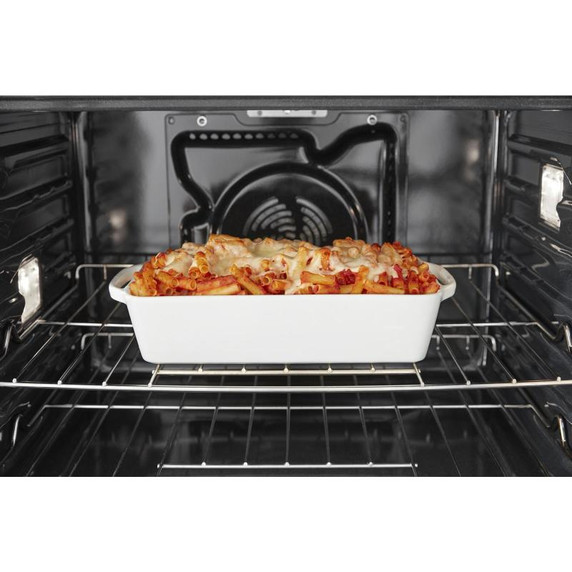

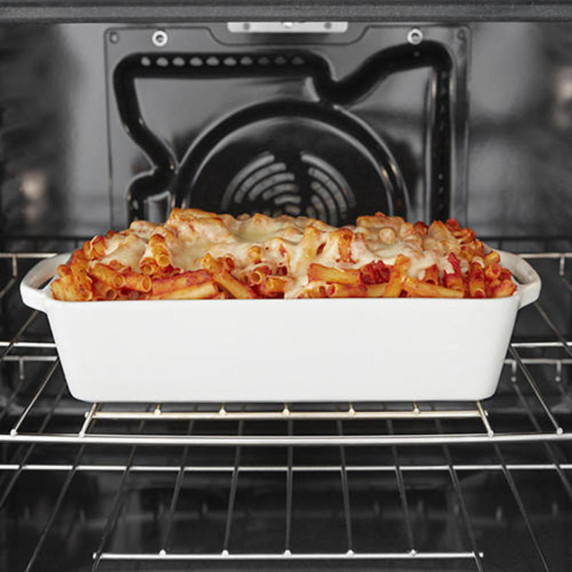

True Convection with Third Heating ElementBake multiple dishes using a third heating element and a fan to more evenly distribute hot air around the oven.*
*Compared to a traditional thermal-bake cycle on the same model.
SteamClean optionClean up after everyday light spills using only heat and 1-1/4 cups of water—no harsh chemicals or cleaners needed. Used periodically to clean light spills on the bottom of the oven, it keeps the oven clean and reduces the need for frequent self-clean cycles.
Adjustable Self-Clean CycleClean without harsh chemicals using the high temperature self-clean cycle. Adjust the cycle for various soil levels to keep your oven looking clean.
Frozen Bake™ TechnologySkip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.
Keep Warm SettingThe Keep Warm™ setting uses low heat to keep food warm in your oven.
BroilWhen you place food close to the oven’s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.
Convect BroilWhen cooking thicker cuts of meat like bone-in chicken or steaks over an inch thick, use the Convect Broil setting to brown the top while still keeping the hot air circulating around the food in the oven to cook your food.
BakeCook your favorite treats like cookies, pies, cakes or muffins with the Bake setting that uses hot air to cook food inside the oven.
Convect BakeConvect Bake uses the bake, broil, and ring heating elements along with a fan to distribute hot air more evenly when cooking on multiple racks.*
*Compared to a traditional thermal-bake cycle on the same model.
Convect RoastCook foods such as chicken and turkey with the Convect Roast setting that uses high heat from the bake, broil, and ring elements with the fan to circulate air around the oven cavity.
Rapid PreheatSave time with faster preheating.* A rear fan combined with the use of all of the elements helps to heat the oven quickly.
*Single-rack baking with Rapid Preheat option versus three-rack without option.
Connects to Yummly® Smart ThermometerThe Yummly® Smart Thermometer helps eliminate guesswork in the kitchen by helping you cook meat exactly how you like it. Paired with your Whirlpool® Smart Oven, it allows you to set the oven temperature and monitor progress from your phone. When the meat is finished cooking, you’ll get a notification and your oven will automatically turn off.* Yummly® Smart Thermometer sold separately.
*U.S. only. Compatible smart appliance required. Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect and yummly.com.
Scan-to-Connect Technology*
*U.S. only.You don’t need to be a tech expert to connect your new appliance. Simply open the Whirlpool® App, add your appliance and follow the guided experience to get up and running.*
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
Voice Control with a Compatible Voice-Enabled Device*
*U.S. only.Control your kitchen no matter what you’ve got on your hands with simple voice commands using the Google Assistant or an Alexa-enabled device.*
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
Yummly® Guided Cooking*
*U.S. only.Yummly® Guided Cooking* makes meal prep easier by helping you answer the question “what’s for dinner?” before it’s even asked. Recipes with the Connected Fork icon in the Yummly® App include step-by-step video tutorials that provide the extra assistance you need on busy days. Prompts in the app even send cooking instructions straight to your Whirlpool® Smart Wall Oven at the right times, so dinner’s ready when your family’s hungry.**
*U.S. only. **Select recipes only. Compatible smart appliance required. Appliance must be set to remote enable. Features subject to change. Details and privacy info at whirlpool.com/connect and yummly.com.

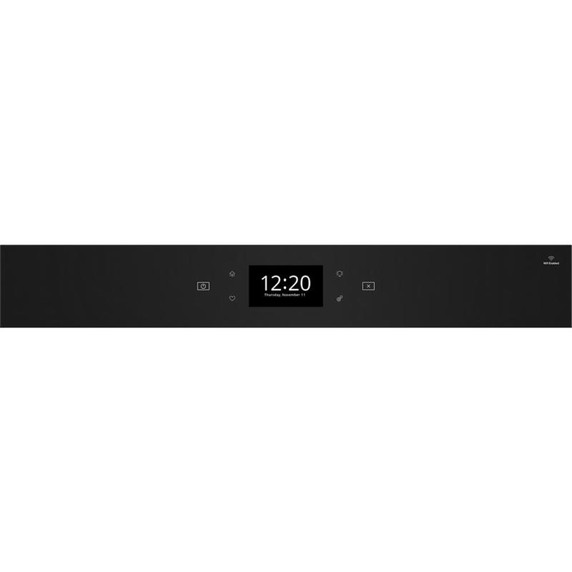

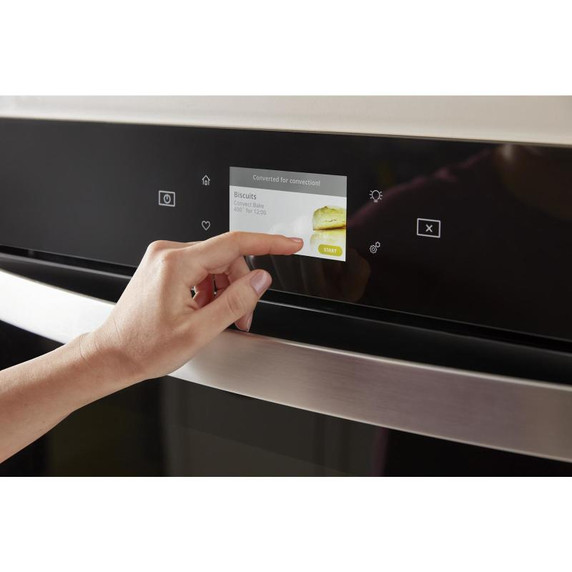

TouchscreenGet instant access to the settings you use most with a 4.5" full-color Touchscreen display.
FavoritesMake your favorite cooking settings easy to access by creating and saving them right in the Whirlpool® App or directly on your appliance.*
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
Assisted CookingAssisted Cooking cycles calculate and set the ideal cooking time and temperature for common foods like casseroles, meat, fish, vegetables, pizza and some baked goods.
Remote StartWhen set to remote enable, use your smartphone or tablet to remotely turn your oven on so it’s heated up and ready to cook meals when you are.*
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
Multi-Step CookingMake multi-step meals more simple. Use your smartphone or tablet to send multiple cooking instructions to the oven all at once.* The temperature automatically adjusts based on the recipe you enter for great results.
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
Hidden Bake ElementA Hidden Bake Element under the floor of the oven creates a smooth surface inside the oven that’s easy to clean.
Delay StartProgram the oven to start baking at a future time so you can move onto other things, and still get dinner to the table on time.
Control Lock ModeDisable the control panel to avoid unintended use and easily clean controls.
Convection ConversionYour oven will do the math for you when you need to convert traditional recipes for convection cooking, automatically adjusting cooking times and temperatures.
Extra-Large Oven WindowSee and savor. The Extra-Large Oven Window provides a wide view to let you check on food without having to open the oven door.
Sabbath ModeUse Sabbath Mode to keep the oven on the Bake setting at a set temperature which allows for cooking or warming food until it's turned off. When this mode is enabled, displays, tones and all other cooking and cleaning cycles are disabled.

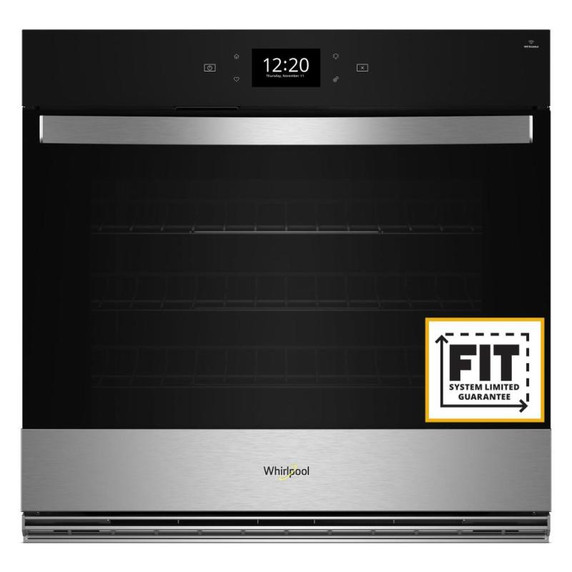

FIT System Limited GuaranteeThe FIT System Limited Guarantee ensures your new Whirlpool® Wall Oven will fit or get up to $300 toward cabinet modification.*
*Fit System Limited Guarantee: On 27"" and 30"" Whirlpool® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit www.whirlpool.com/fit-guarantee.html for complete details.
An American Company for over 100 yearsWhirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
Control TypeElectronic
Display ColorFull Color
Hz60
Amps20
Volts240
Power Cord IncludedNo
Fuel TypeElectric
ConnectivityApp; Remote Access; Voice Controlled; WiFi
Annual Energy Usage Kwh363
Country Of OriginUSA
Sabbath ModeYes
Extended Service Plan Parent
Product To Product Pairs
Optional AccessoriesW11551866, W11570323
Language ConversionEnglish/French/Spanish
Power On Indicator LightYes
Oven SelectionsAir Fry; Auto On; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Favorites; Frozen Bake; Keep Warm/Warm Hold; Language Conversion; Rapid Preheat; Sabbath Mode; Start Time; Stop Time; Temperature-Sensor Baking; Timer
ULYes
CULYes
Energy Rating Kwh Year363
Handle MaterialMetal
Handle ColorStainless Steel
Oven ConfigurationSingle Oven
Size In30
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Bake Element Power2800W
Broiler Element Power3600W
Interior ColorGrey
Number Of Oven Lights2
Number Of Rack Guides6
Oven Interior Depth In Inches19.0
Oven Interior Width In Inches25.0
Interior CoatingPorcelain
Light ControlOven Light Touch Pad
Number Of Broil Elements1
Oven Interior Height In Inches18.0
Oven Cooking SystemConvection
Light TypeHalogen
Number Of Oven Racks3
Convection FunctionsBake, Broil, and Roast
Number Of Bake Elements2
Convection Element Power Watts2500
Carton Depth31.0"
Carton Height31.0"
Carton Width35.0"

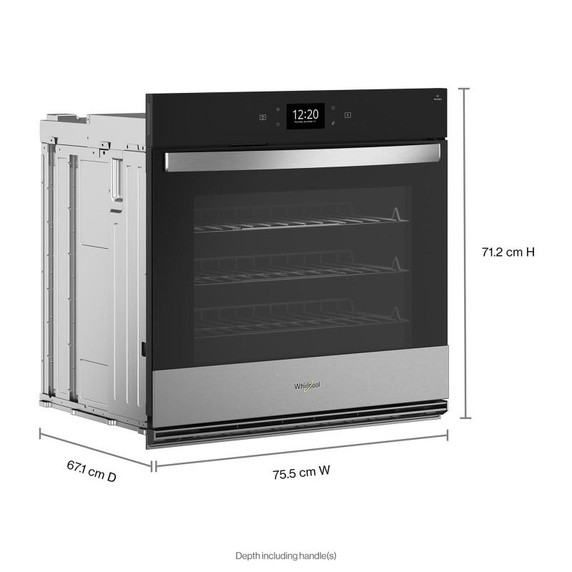

Depth Closed Excluding Handles24.44"
Depth Closed Including Handles26.44"
Depth With Door Open 90 Degree46.19"
Depth26.44"
Gross Weight157.0 lbs.
Net Weight139.0 lbs.
Width29.7"
Cutout Depth24.0"
Cutout Height28.0"
Cutout Width28.5"
Capacity FT3 (cubic feet)5.0
