Whirlpool

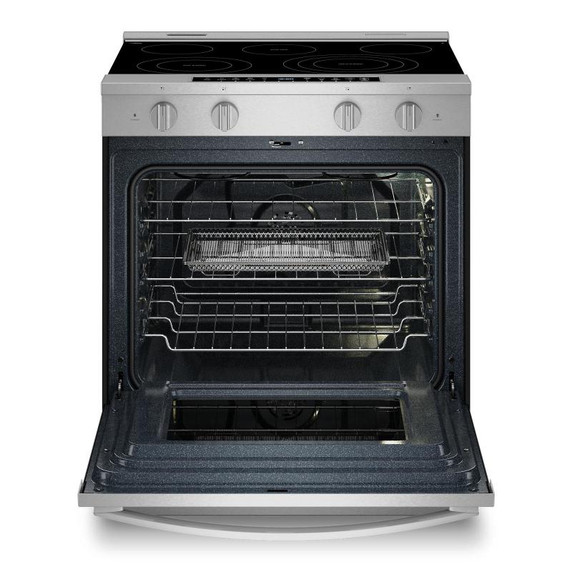

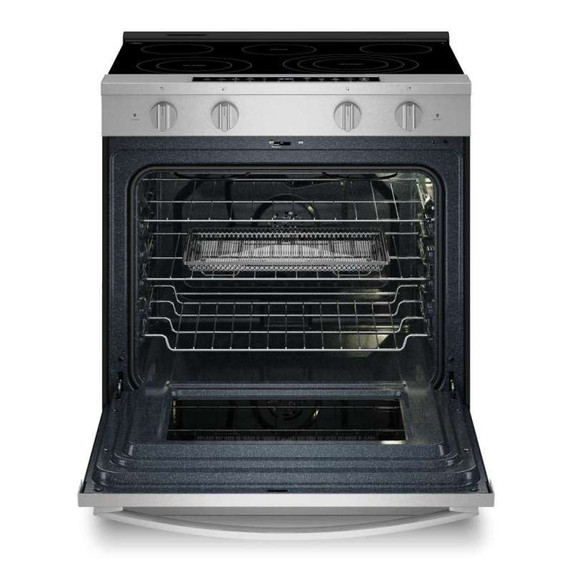

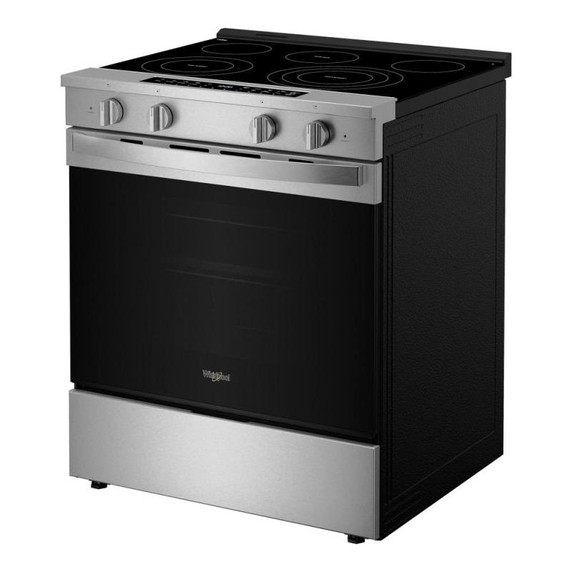

Whirlpool® 30-inch Smart Slide in Electric Range with Air Cooking Technology, No Preheat Air Fry, WipeClean™ Coating, Steam/Self Clean and High Speed Preheat YWSES7530RZ
Specifications
Country Of OriginUSA
Dishwasher SafeNo
Extended Service Plan Parent
Product To Product Pairs
Optional Accessories4396096RB, W11692811
Electrical
Hz60
Power Cord IncludedYes
Amps40
Volts208
Watts12
Certifications
ULYes
CULYes
ADA CompliantYes
Energy Rating Kwh Year601
Star K CertifiedStar K Certified
Controls

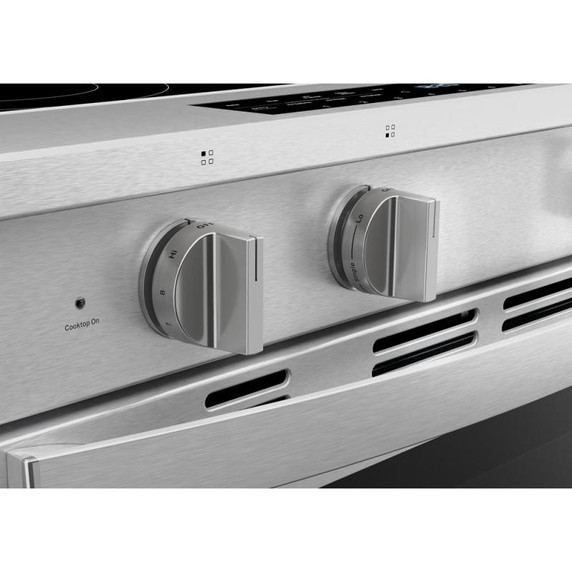

Knob TypeWeighted

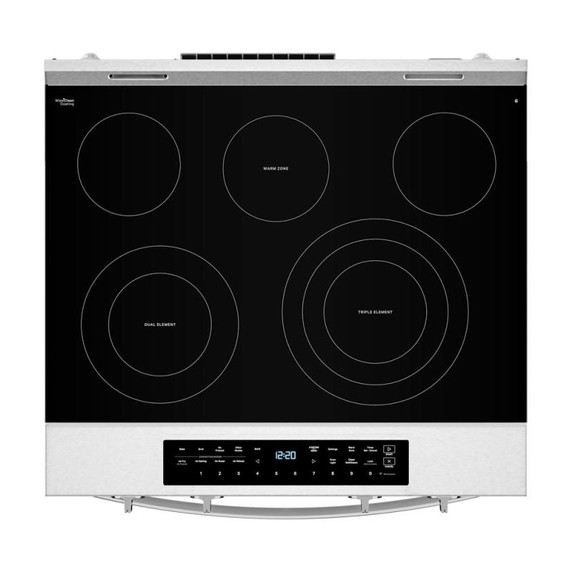

Cooktop Details
Left Front Element Burner TypeDual
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Left Front Element Burner Size9in./6in.
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Center Rear Element Burner Power100W
Center Rear Element Burner TypeWarming
Left Front Element Burner Power3000W/1400W

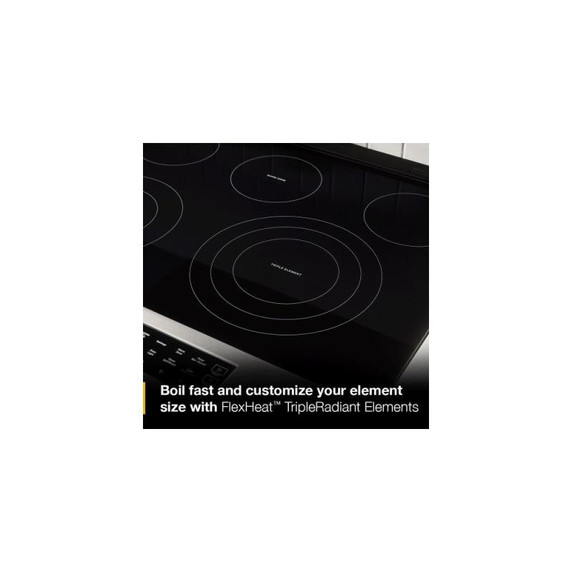

Right Front Element Burner Size12in./9in./6in.
Right Front Element Burner TypeTriple
Ignition TypeN/A
Right Front Element Burner Power900W1950W3000W
Features
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Automatic Convection Conversion Temperature AdjustNo
Power Outage CompatibleYes
GriddleNo, Optional Accessory
LP ConvertibleN/A
Natural Gas ConvertibleN/A
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationSlide-In
Details
Hidden Bake ElementYes
Oven Control LocationFront Control
Oven Cooking SystemTrue Convection
Oven Light Switch LocationOven Control
Oven Light TypeHalogen
Oven Cleaning TypeSteam Clean
Number Of Rack Guides5
Bake Element Power2400W
Broiler Element Power3400W
Number Of Oven Lights1

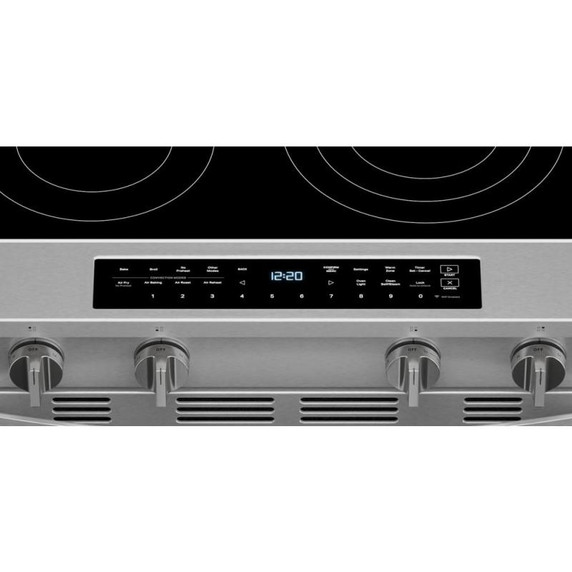

Oven Control TypeTap Touch
Broiler LocationTop Center
Number Of Oven Racks3
Convection Element TypeTrue
Oven Rack Type2 Standard and 1 Max Capacity
Convection FunctionsBake; Broil
Oven Control Knob TypeN/A
Oven Interior Depth In Inches22.75
Oven Interior Width In Inches26.38

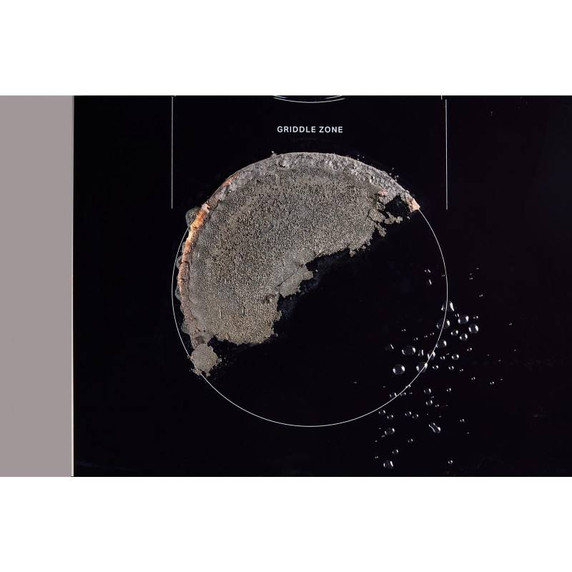

Cooktop Surface MaterialGlass with WipeClean™ Coating
Exterior
Door RemovableYes
Drawer TypeStorage Drawer
Configuration and Overview
Fuel TypeElectric
Description
Range TypeSlide-in
Energy
Annual Energy Usage Kwh601
Compatibility
Works WithAmazon Alexa; Android; Google Assistant; Nest; iOS
ConnectivityApp; Bluetooth; Remote Access; Voice Controlled; WiFi
Carton Depth31.0"
Carton Height43.0"
Carton Width32.0"
Gross Weight196.0 lbs.
Depth Closed Excluding Handles26.57"
Depth Closed Including Handles29.17"
Depth With Door Open 90 Degree47.71"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"

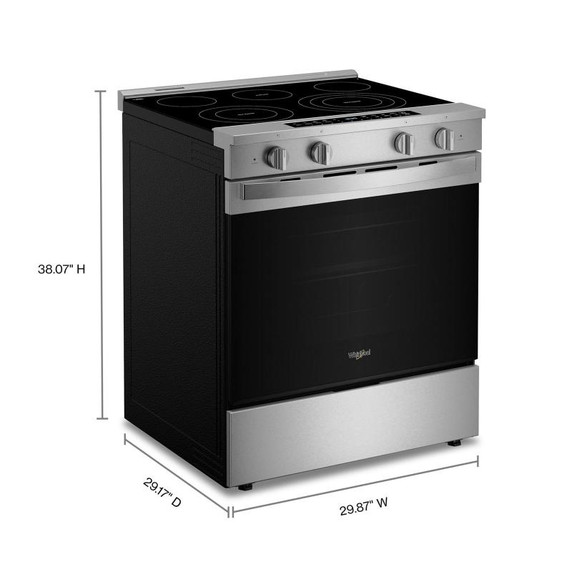

Depth29.17"
Height38.07"
Maximum Height38.07"
Minimum Height36.58"
Width29.87"
Capacity FT3 (cubic feet)5.3
