Country Of OriginUSA
Extended Service Plan ParentEW06IW4Y, EW06IW1Y, EW06IW2Y

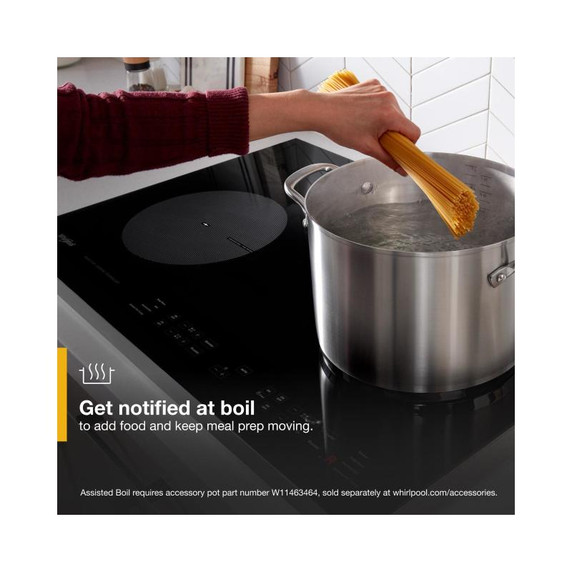

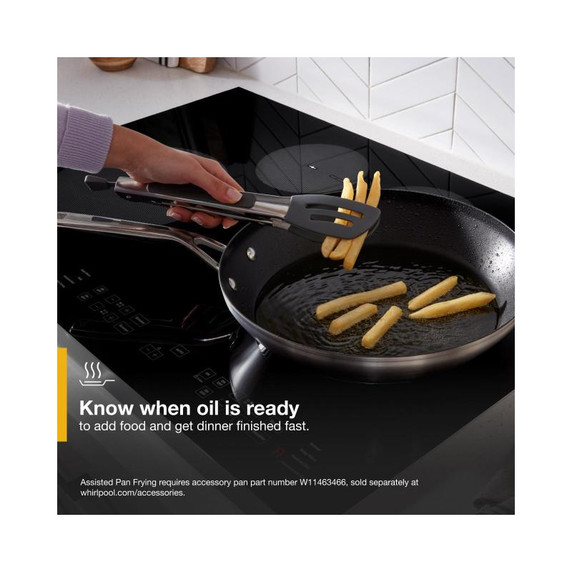

Optional AccessoriesW11463466, W10355051B, W11463464
Product To Product PairsUXT5530AAS, WVU17UC0JS, WVW53UC0LS, UVL5430JSS, WVW51UC0LS, WVU57UC0FS, UXT4130ADS, UXT5230BDS, WVU17UC0JW, WVW73UC0LS, WVU37UC0FS, WVW57UC0FS, WVW53UC0HV
Hz60

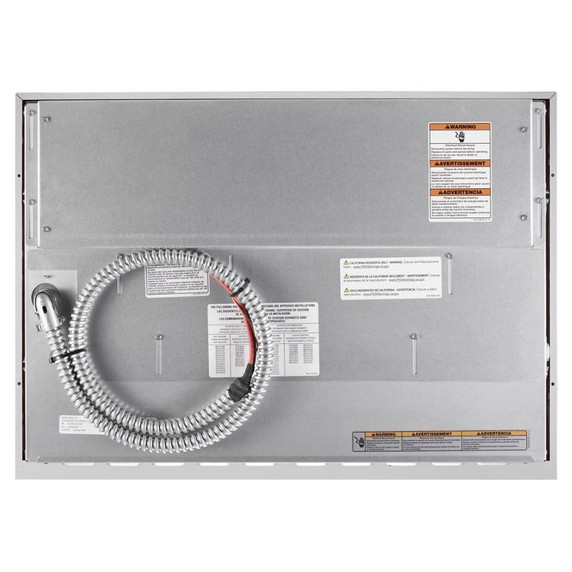

Power Cord IncludedYes
Volts240
Amps30
208v CompatibleYes
Watts7
ULYes
ADA CompliantYes
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Downdraft VentNo
Installs Over Built In OvenYes
Automatic Pan DetectionYes
Automatic Pan Size AdjustmentYes

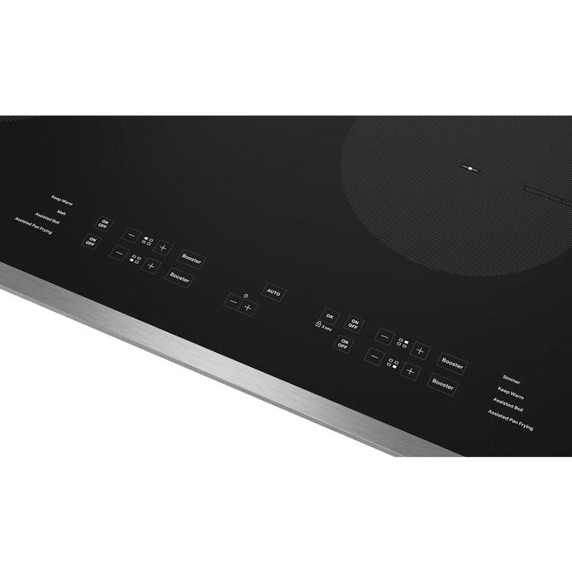

Digital DisplayYes
Power BoostYes
Fuel TypeElectric

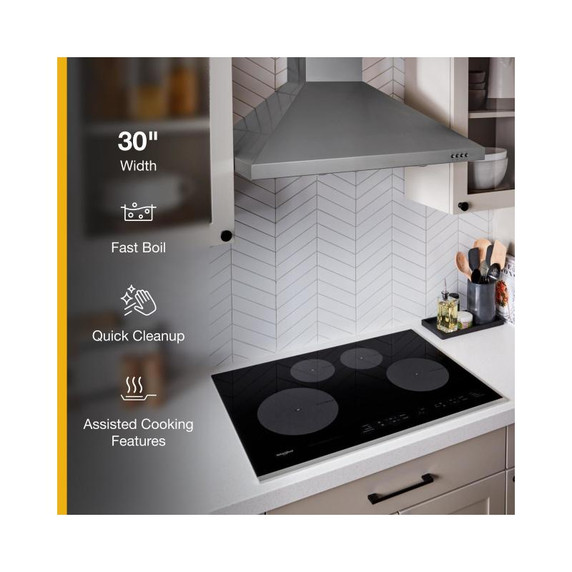

Size In30
Cooktop TypeTraditional
Combinations With OvenWOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS52EM4; WOS72EC0; WOS72EC7
Cooktop ConfigurationAll Burners
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard

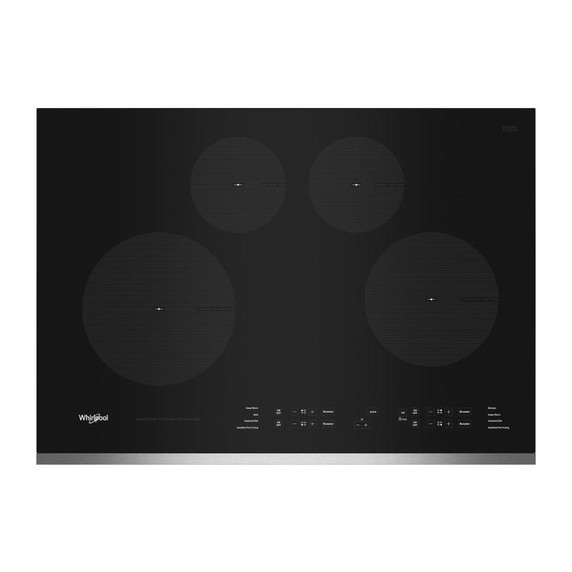

Number Of Cooking Element Burners4
Right Rear Element Burner TypeStandard
Cooktop Element StyleInduction
Left Front Element Burner Power2100W/3000WBoost
Left Front Element Burner TypeStandard
Left Rear Element Burner Power1200W/1600WBoost
Right Front Element Burner TypeStandard
Right Rear Element Burner Size8in.
Right Rear Element Burner Power1200W/1600WBoost
Right Front Element Burner Size8in.
Left Front Element Burner Size10in.
Right Front Element Burner Power2100W/3000WBoost
Control TypeManual
Control LocationFront

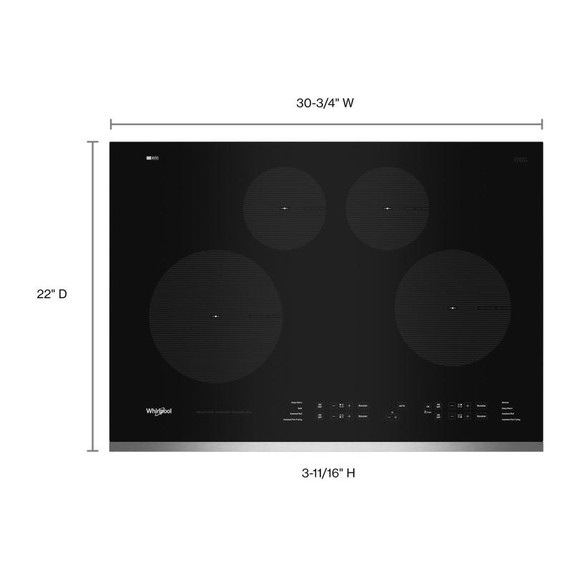

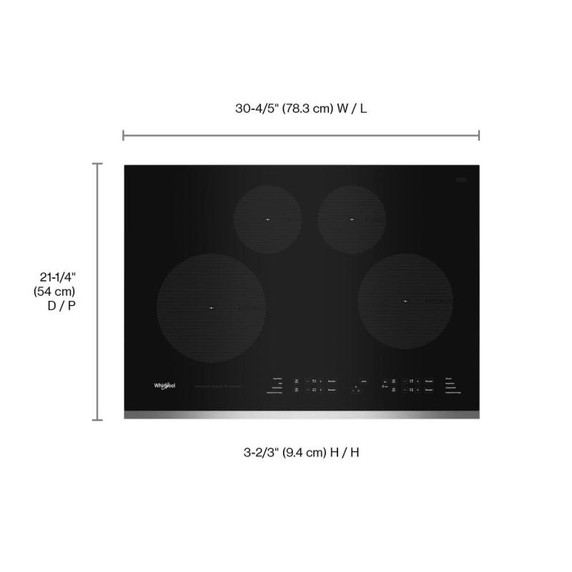

Depth21.25"
Height3.69"
Maximum Height4.0"
Net Weight46.0 lbs.
Width30.81"
Carton Depth Inch25.28
Carton Height Inch7.64
Carton Width Inch34.15
