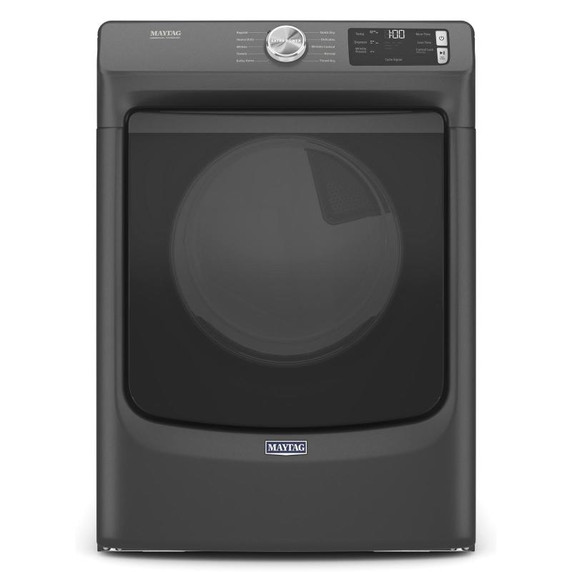

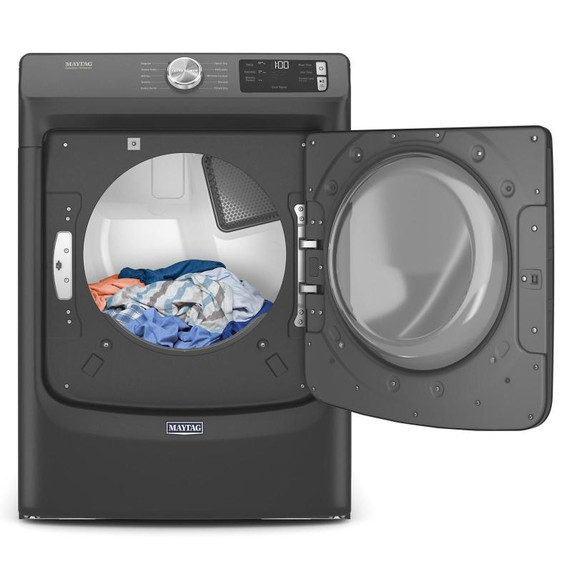

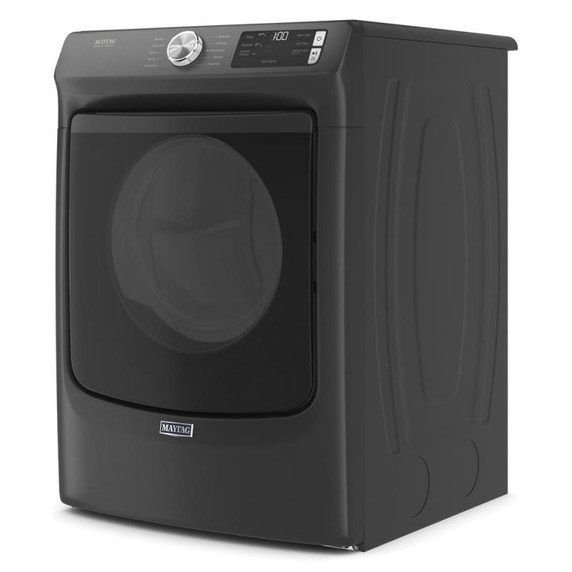

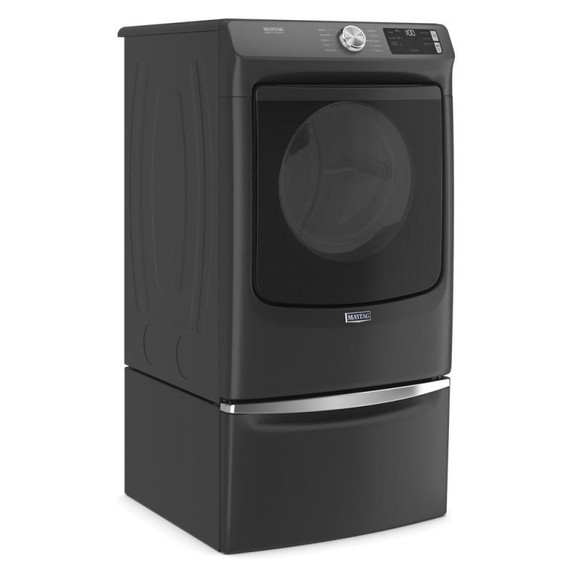

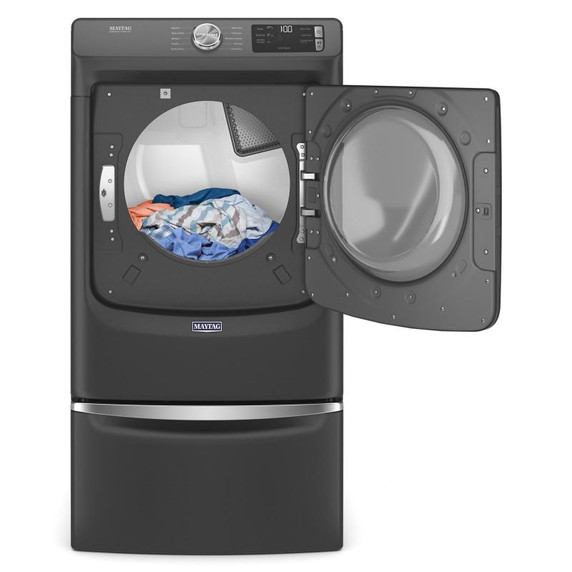

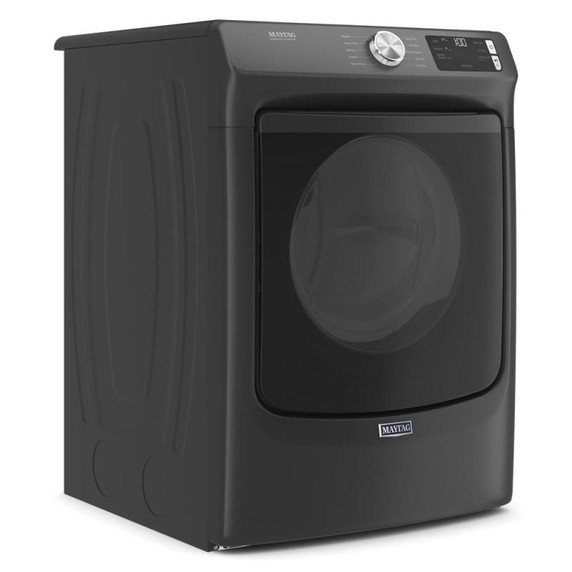

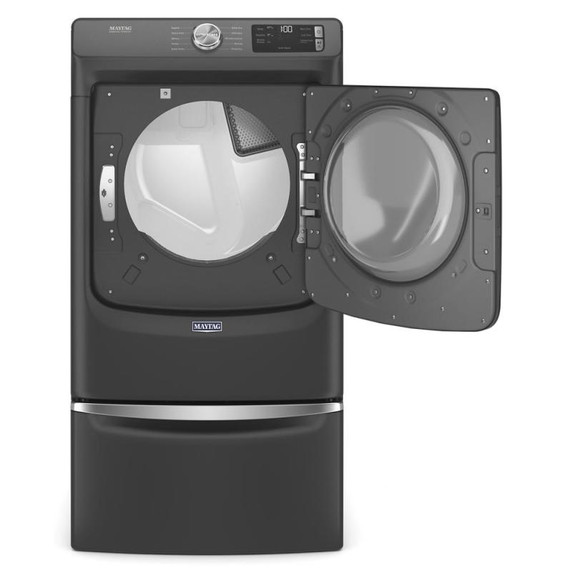

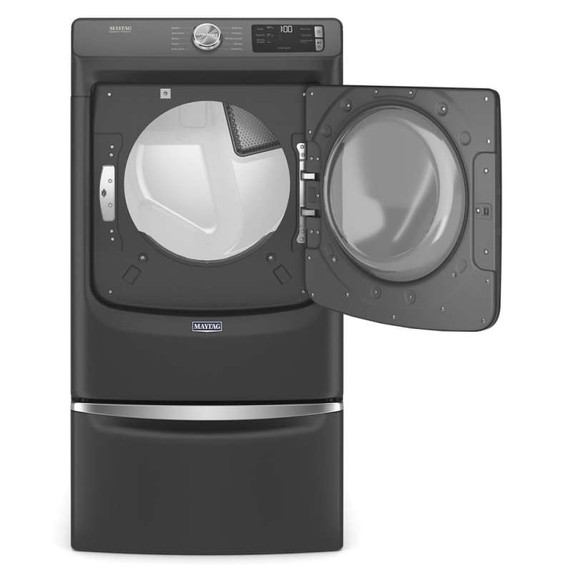

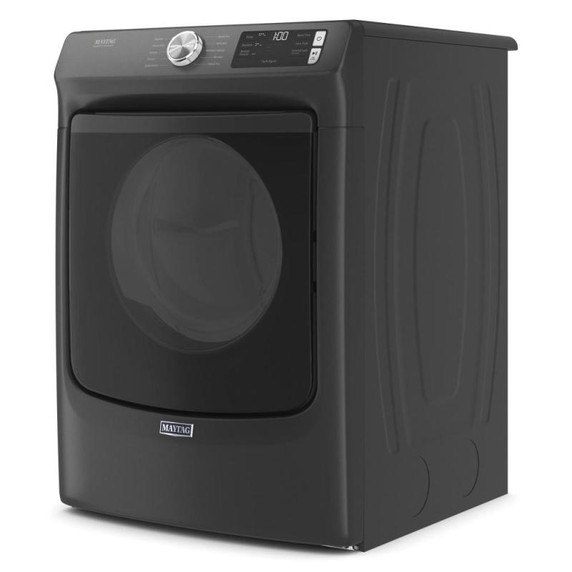

Maytag® Front Load Electric Dryer with Extra Power and Quick Dry cycle - 7.3 cu. ft. YMED5630MBK
Whirlpool, Maytag Black Friday Laundry Sale, November 21 - December 4, 2024. Save $100 when you purchase 2 qualifying Whirlpool® and/or Maytag® laundry appliances.
Maytag
Maytag® Front Load Electric Dryer with Extra Power and Quick Dry cycle - 7.3 cu. ft. YMED5630MBK
*Results may vary based on load size and type.
Specifications
Country Of OriginUSA
Top Load MatchingNo

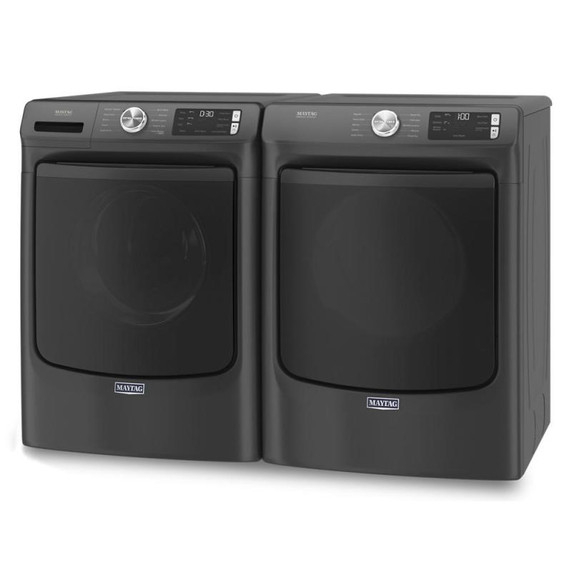

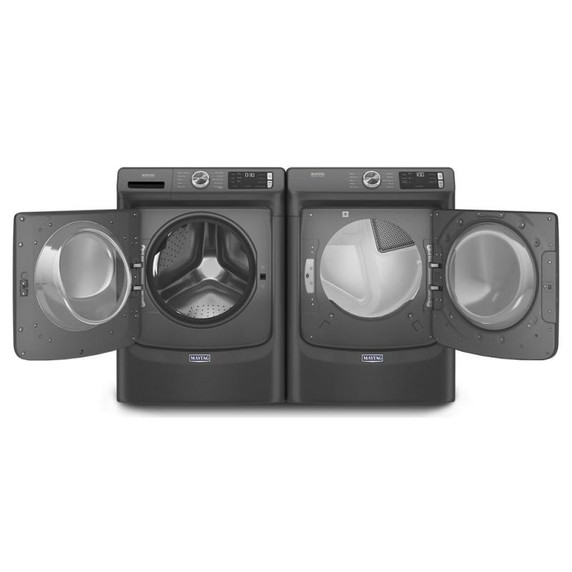

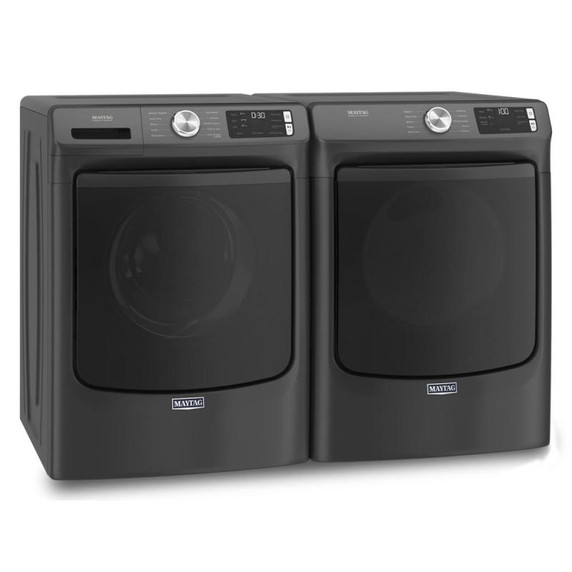

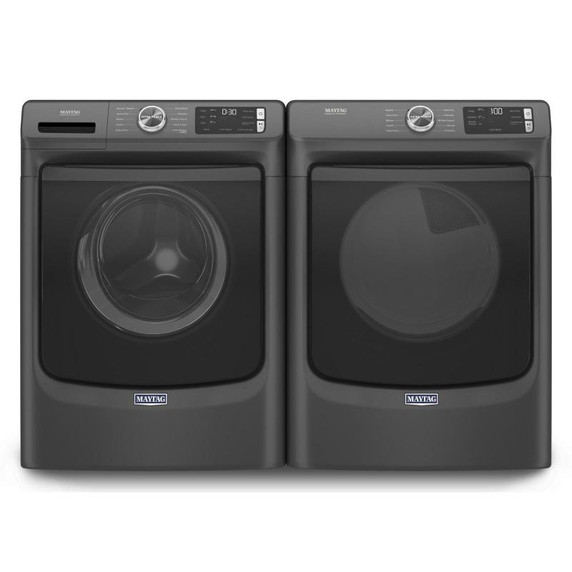

Front Load MatchingYes

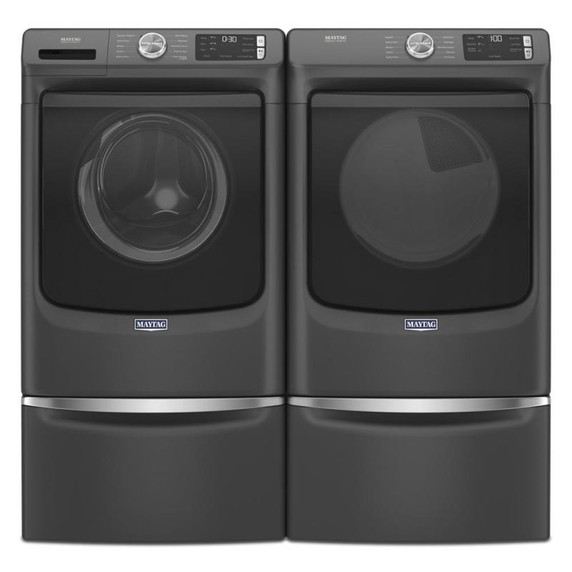

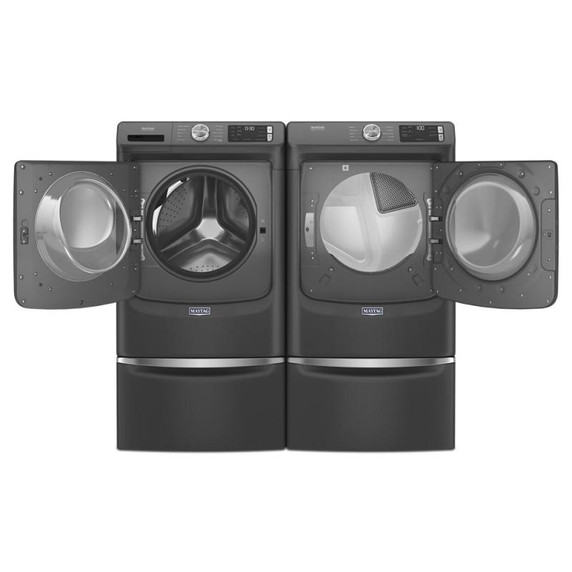

Product To Product PairsXHPC155MBK
Extended Service Plan ParentEW05IW2Y, EW05IW1Y, EW05IW4Y
Optional AccessoriesW10322470A, W10869845, XHPC155MBK, W10323246, 4396028
Electrical
Hz60
Volts240
Amps30
Watts5
Certifications
ULYes
Energy Star QualifiedYes
Configuration and Overview
Fuel TypeElectric

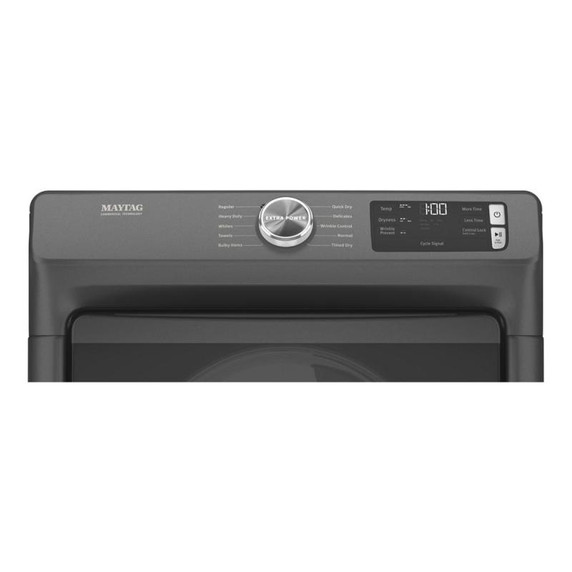

Controls
End Of Cycle SignalYes
Control LocationFront Console
Feedback Status IndicatorsSensing; Cool Down; Wet; Damp; Check Vent
Control TypeKnob & Buttons
Details
Hoses IncludedNo

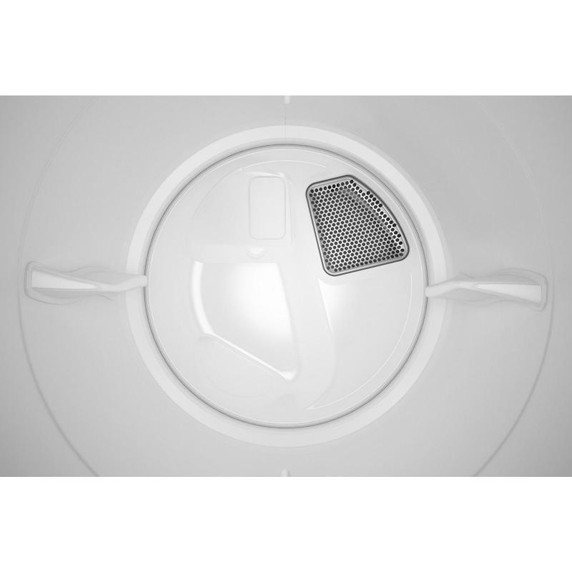

Drum MaterialPowder Coat
Lint Screen LocationFront
Drying RackNo
Quad BafflesYes
Exterior
WindowYes

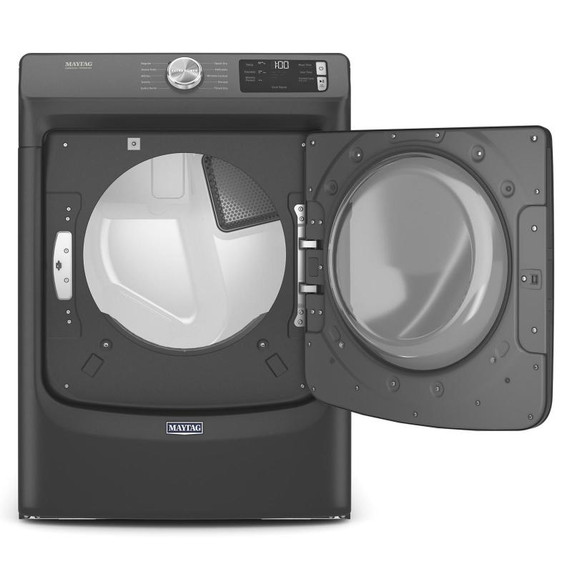

Door StyleSide Swing
Reversible DoorYes
Cycles and Options
Cycle Time RemainingYes
Features
Automatic Dry ControlYes

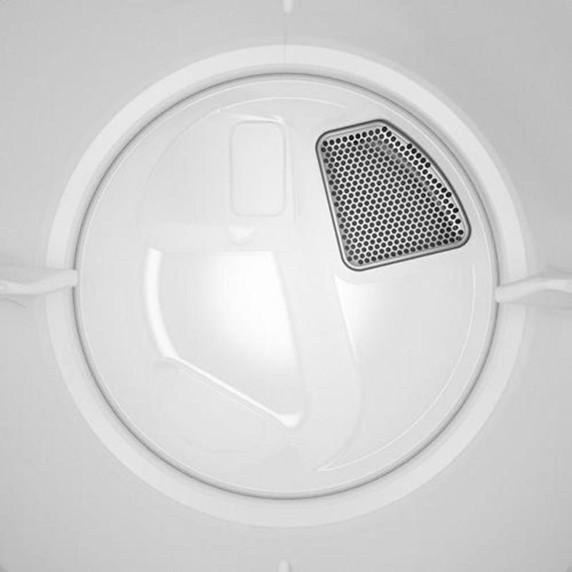

Moisture SensorYes

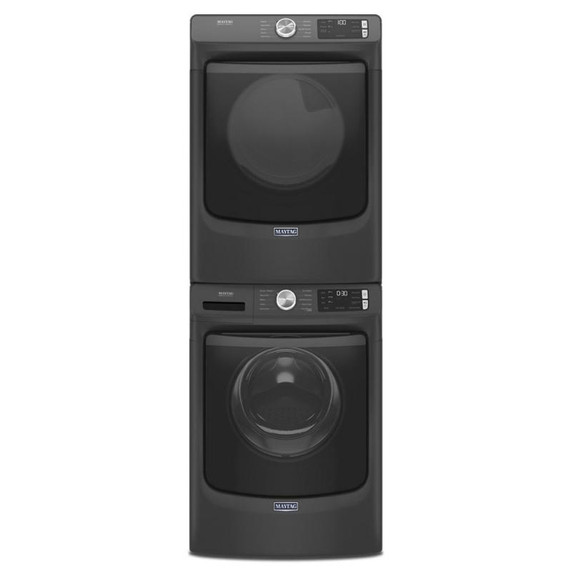

StackableYes
Lint Filter IndicatorNo

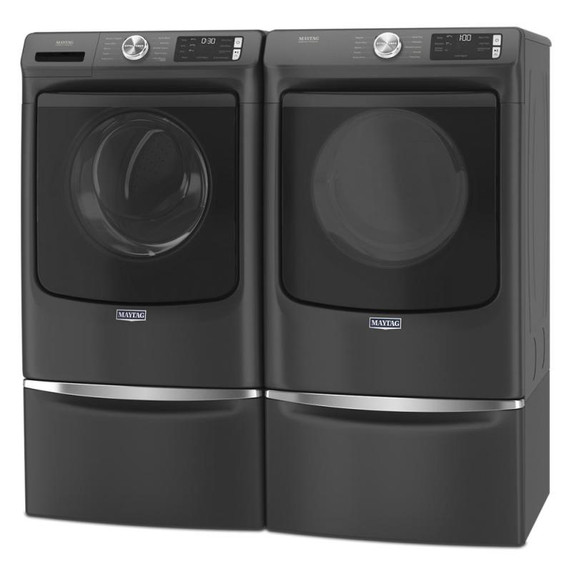

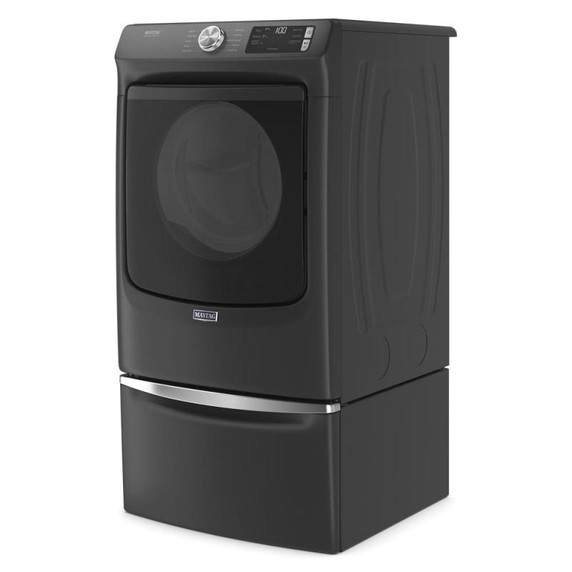

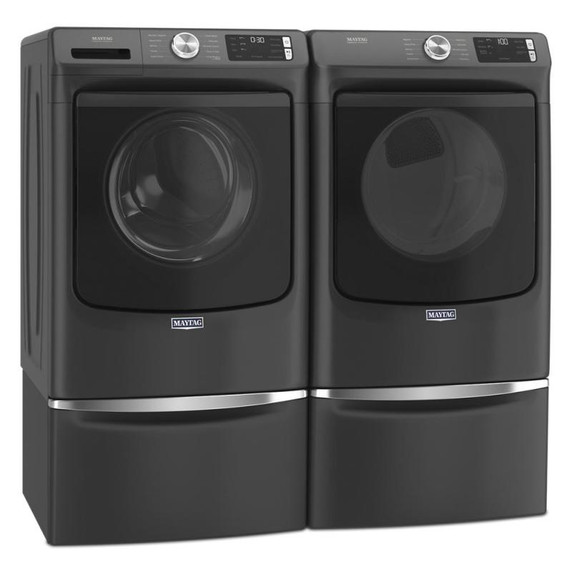

Pedestal OptionsXHPC155MBK;
Installation Considerations
Long VentNo
Maximum Vent Length Ft64
Venting DirectionLeft, Right, Bottom, Rear
Modifiers
Number Of Dryness Levels3
Selection Of Drying LevelsLess; More; Normal
Temperature Settings
Number Of Temperatures4
Temperature SelectionAir Only; High; Low; Medium
Cycles
Number Of Dryer Cycles10
Drying Cycles SelectionsBulky Items; Delicates; Heavy Duty; Normal; Quick Dry; Regular; Timed Dry; Towels; Whites; Wrinkle Control
Options
Dryer Option SelectionsControl Lock; Cycle Signal; Wrinkle Prevent
Carton Depth31.26"
Carton Height44.96"
Carton Width28.66"
Depth With Door Open 90 Degree51.0"

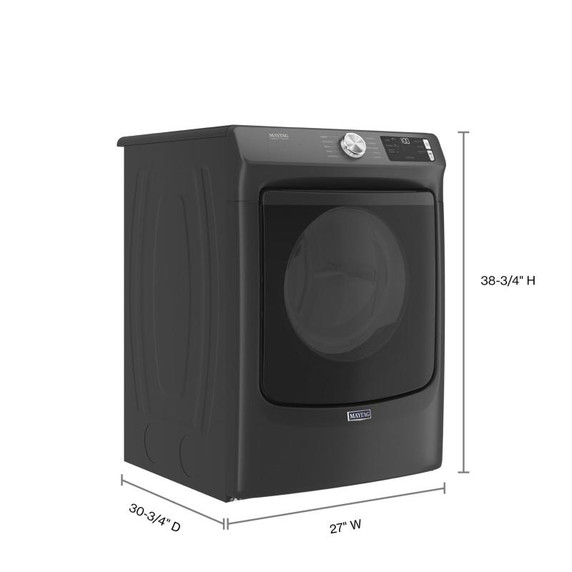

Depth30.75"
Gross Weight175.0 lbs.
Height38.75"
Width27.0"
Capacity IEC CAN (cubic feet)7.3000002
