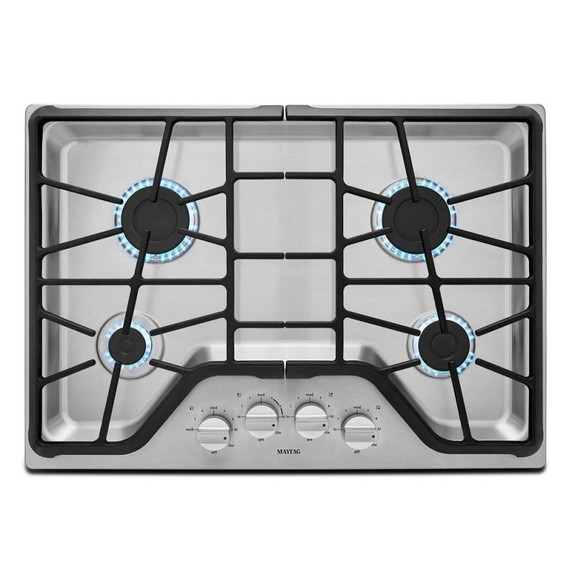

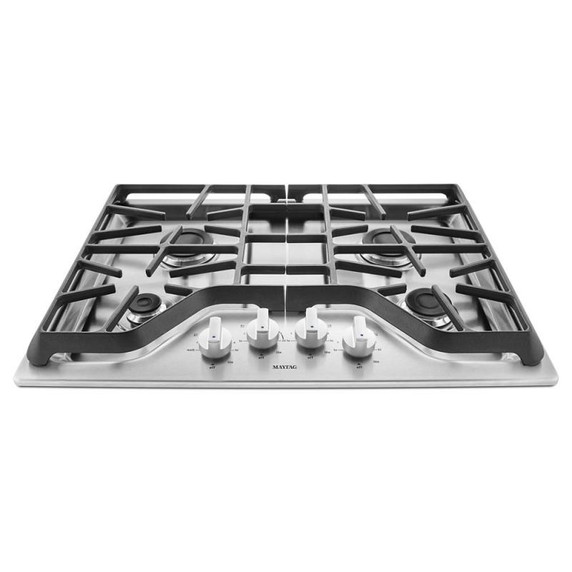

Maytag® Table de cuisson au gaz avec 4 brûleurs PowerTM - 30 po MGC7430DS
Maytag Dependable Savings Event, August 29 - September 25, 2024. Save $150 when you purchase 2 qualifying Maytag kitchen appliances. Save $300 on 3 or more!
15,000-BTU Power™ BurnerExclusivo quemador que brinda máxima potencia y rapidez de cocinado, para obtener resultados precisos y consistentes en todo tipo de platillos.
Heavy-duty DuraClean™ continuous cast-iron gratesHeavy-duty DuraClean™ continuous cast-iron grates
10-Year Limited Parts Warranty on the Burners and GratesWith a 10-year limited parts warranty on the cooktop burners and cast-iron metal grates, we built these cooktops tough enough to keep cookin' for years.
Designed, Engineered, Assembled in the U.S.A.These cooktops are designed, engineered and assembled in the U.S.A.
Simmer BurnerThe simmer burner provides 800 to 5,000 BTUs of precise, adjustable heat to give you both a full-power simmer burner and warming setting all in one.

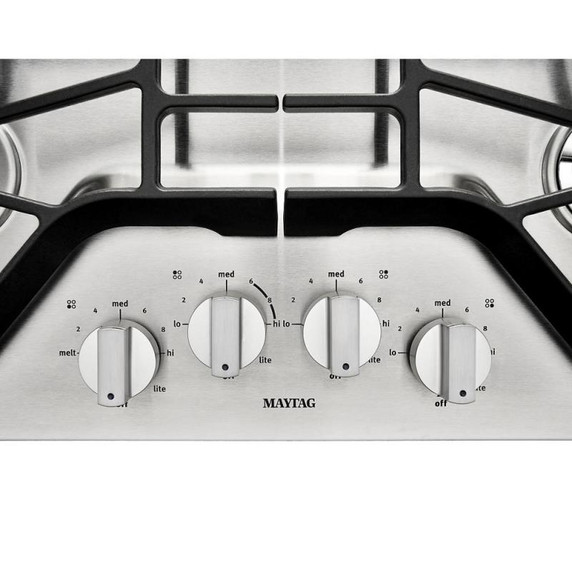

Front ControlsFront controls keep your cooktop knobs close at hand so you can manage your meals without breakin' a sweat.
Specifications
Country Of OriginUSA
Extended Service Plan ParentEW05IW4Y, EW05IW2Y, EW05IW1Y
Product To Product PairsUXT5230BDS, WVU17UC0JW, WVU17UC0JS, WVU37UC0FS, UVL5430JSS, UXT5530AAS, WVU57UC0FS, WVW57UC0FS
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedOui
Description
Size In30
Combinations With OvenMEW9527; MEW9530
Cooktop TypeTraditionnelle
Cooktop Details
Number Of Cooking Element Burners4
Left Front Element Burner Power5000BTU
Left Rear Element Burner Power15000BTU
Right Front Element Burner Power12000BTU
Right Rear Element Burner Power9100BTU
Cooktop Element StyleBrûleurs scellés
Right Rear Element Burner TypeBrûleur scellé
Left Rear Element Burner TypeHaute performance
Right Front Element Burner TypeHaute performance
Left Front Element Burner TypeMijoter
Certifications
ULOui
ADA CompliantOui
Configuration and Overview
Fuel TypeGaz
Features
Hot Surface Indicator LightNon
LP ConvertibleOui - Trousse comprise
Power Outage CompatibleOui
GriddleS/A
Heating Element On Indicator LightNon
Digital DisplayNon
Downdraft VentNon
Automatic Pan DetectionNon
Power BoostNon
Controls
Control LocationAvant
Control TypeManuel
Knob TypeLavable au lave-vaisselle
Refinements
May CooktopBrûleur Power ™; Brûleur Simmer Flex-Choice ™; Conforme ADA
Depth21.0"
Height3.69"
Maximum Height4.0"
Minimum Height3.38"
Net Weight52.0 lbs.
Width30.0"
Cutout Depth19.94"
Cutout Height5.25"
Cutout Width28.5"
Carton Depth Inch25.0
Carton Height Inch12.04
Carton Width Inch34.76
