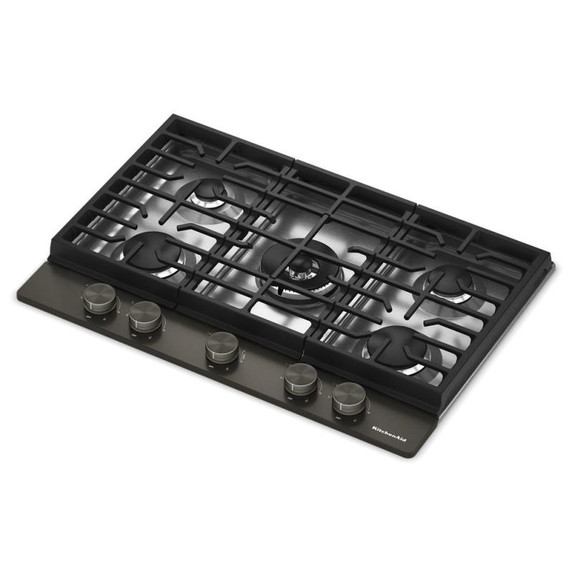

Kitchenaid® Gas-on-Metal Cooktop with an Integrated Wok Grate and CookShield™ Finish KCGK530SBE

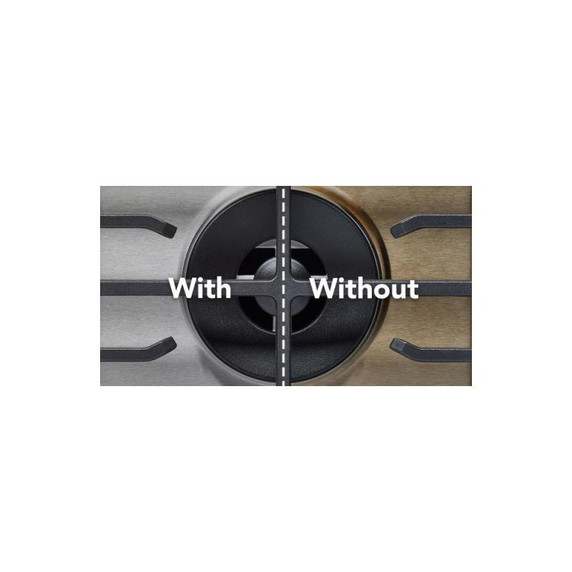

Integrated Wok Gratelets you experience high-heat wok cooking with authentic stir-fry flavor right at home. The removable grate seamlessly allows you to nestle a round-bottom wok directly into the burner's flames so you can flash-sear garlic shrimp, toss spicy beef or caramelize crisp vegetables in minutes.

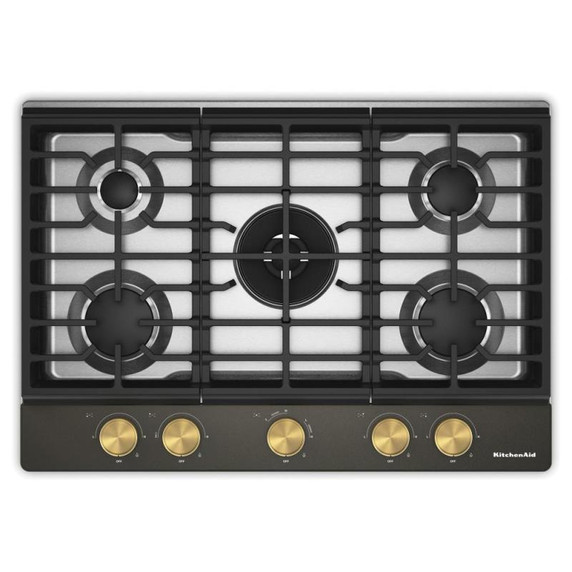

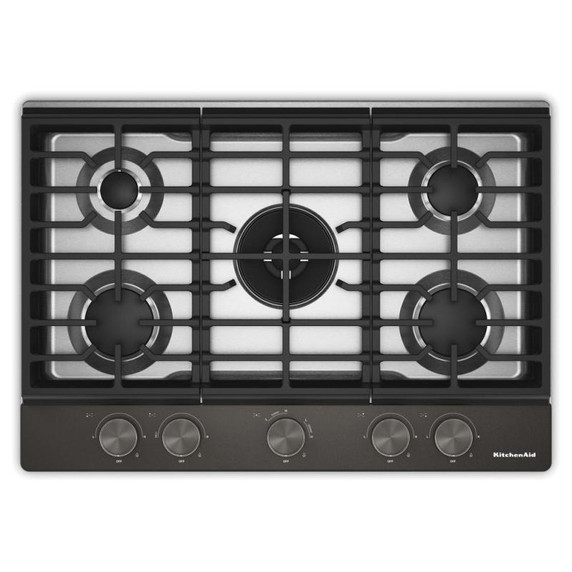

Designed to be Personalizedwith a curated palette of exterior finishes and mixed metal hardware. Pick from lush Juniper, warm Black Ore and classic Stainless Steel finishes, all with matching knobs. Personalize your hardware with optional knob accessory kits in Brass, Bronze, Black Ore and Stainless Steel.
Premium Weighted Knobsoffer an enhanced, tactile feel when controlling your cooktop.
17,000 BTU Professional Dual Ring Burnerallows you to go from one small flame for precise simmering to a dual flame for powerful boiling, all on the same burner.
Edge-to-Edge Cast-Iron Gratesenhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface. Wash these Cast-Iron Grates right in the dishwasher when they get messy.
Wall Oven Compatibleinstall this cooktop above a wall oven or on its own for more flexibility
6,000 BTU Simmer Burnerallows control of the flame at the lowest setting, for precise simmering and melting.
Electronic Ignitionautomatically lights burners so no standing pilot light is needed.
Sealed Burnersprevent crumbs, spills and boilovers from falling into the cooktop interior, making cleanup easy.
ADA Compliantthis appliance meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
LP Conversion Kitallows you to convert the cooktop so it can be used with liquid propane
Controls
Control TypeManual
Control LocationFront
Knob TypePremium Weighted
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
208v CompatibleNo
Configuration and Overview
Fuel TypeGas
Specifications
Country Of OriginUSA
Extended Service Plan Parent
Product To Product Pairs
Launch DateApril 2026
AestheticNew Design
CustomizableYes
Features
Hot Surface Indicator LightNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
LP ConvertibleYes - Kit Included
Power BoostNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
GriddleNo, Optional Accessory
Automatic Pan Size AdjustmentNo
Certifications
ULYes
ADA CompliantYes
Description
Size In30
Cooktop TypeTraditional
Combinations With OvenKOES430R; KOES527P; KOES530P; KOES530S; KOES630S; KOES727S; KOES730P; KOES730S; KOES930S; KOSE500E; KOSE507E; KOSE900; KOSE900H
Cooktop Details
Cooktop Element StyleSealed Burners
Cooktop ConfigurationAll Burners
Left Rear Element Burner Power6000BTU
Number Of Cooking Element Burners5
Right Front Element Burner Power10000BTU
Right Rear Element Burner Power7000BTU
Left Front Element Burner TypeHigh Output
Right Front Element Burner TypeHigh Output
Left Front Element Burner Power10000BTU
Center Element Burner Power17000BTU
Right Rear Element Burner TypeSemirapid
Left Rear Element Burner TypeMelt / Simmer
Net Weight53.0 lbs.
Carton Depth Inch25.0
Carton Height Inch13.0
Carton Width Inch35.0
Cutout Depth19.81"
Cutout Height5.0"
Cutout Width28.88"
Depth20.98"
Height6.42"
Maximum Height6.3"
Minimum Height6.16"
Width30.02"
